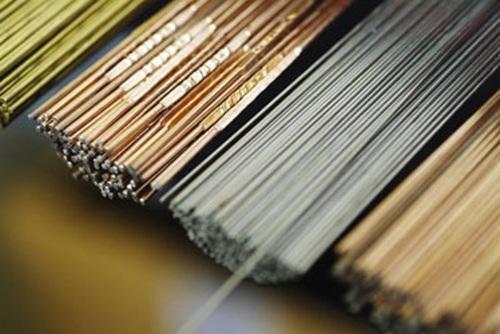

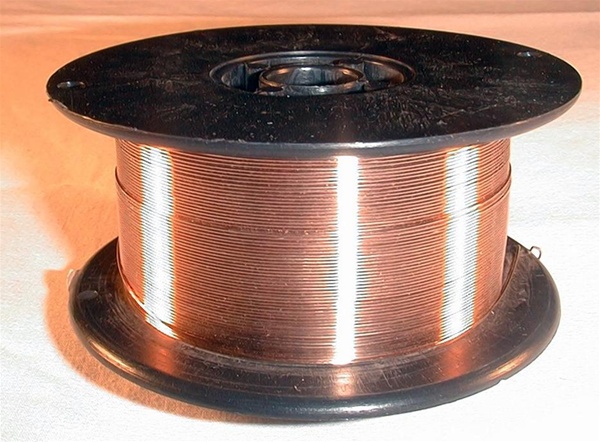

Welding Wire

Newcore Global Pvt. Ltd  has been doing business for welding wire for decades. Its products features good quality and durability.
Gas-shielded Solid
Introduction: JQ.MG80-G is a kind of high strength gas-shielded welding wire. The mixed gas Ar+20% CO2 can be used as shielding gas. It has soft arc, stable burning and fewer spatters. The bead has higher impact toughness.

Uses: Suitable for welding high strength structures with tensile strength of 790MPa. It can be used for welding some key structures, such as pressure vessels, construction machinery, hoisting machinery, ships, mining machinery, etc.
Chemical Composition of Welding Wire(%)
Examples of Chemical Composition of Deposited Metal (%)
Mechanical Properties of Deposited Metal
Reference Current (DC+)
Instructions:
1. The impurity content in the shielding gas should be strictly controlled to guarantee the purity of gas.
2. When welding, the gas flow rate is generally 20～25L/min.
3. The extension elongation should be 15～25mm.
Argon-arc Welding Wire
JQ.TG50
According with GB ER50-6
Corresponding with AWS  ER70S-6
Uses: Used for all-position manual tungsten argon arc backing weld and arc welding on pipelines, and both can produce satisfactory welded joints. Able to be used for welding carbon steel and some low-alloy steel.
Chemical Composition of Welding Wire(%)
Examples of Chemical Composition of Deposited Metal (%)
Mechanical Properties of Deposited Metal
Wire Size
Submerged-arc Welding Wire
JQ.H10MnSiJQ.H10MnSi
According with GB H10MnSi
Corresponding with AWS  EM13K
Introduction: It is a kind of welding wire with appropriate manganese and silicon content. It matches with low-manganese and low-silicon type welding flux. It is not sensitive to the rust on the base metal. It has excellent bead molding, excellent slag detachability and high welding efficiency.
Uses: Used together with fused flux 350 or sintered flux 101. Used for both high speed welding and filling welding on 50kg class base metals. Mostly used for welding boilers, pressure vessels, bridges, ships, etc..
Chemical Composition of Welding Wire(%)
Mechanical Properties of Deposited Metal
Wire Size
Gas-shielded Flux-cored Welding Wire
JQ. YR302
GB：E551T1-B2
AWS：E81T1-B2
Current：Suitable for welding 1Cr0.5Mo (such as 15CrMo) steel below 520
Main Applications：
JQ.YR302
According with GB/T 17493-1998 E551T1-B2
Corresponding with AWS A5.29 E81T1-B2
JIS Z3318 YF1CM-C
Uses: Suitable for welding 1％Cr－0.5％Mo (such as 15CrMo) steel below 520℃.
Chemical Composition of Deposited Metal (%)(CO2Shielding Gas)
Mechanical Properties of Deposited Metal
Reference Current (DC+)

Instructions:
1.The oil stains and rust on the weldments should be cleared away.
2.When welding, the gas flow rate is generally 20～25L/min.
3.When welding with flux-cored welding wires, the extension elongation should be 15～25mm.
4.The humidity of the welding wire storerooms should be preserved below 60%.
5.It is not suitable for non-vacuum-packed welding wires to be stored for more than half a year, and it is not suitable for vacuum-packed welding wires to be stored for more than a year.

Technical Information

Packaging

Packaging of Welding Wire:
Newcore Global Pvt. Ltd  Products are packed and labeled according to the regulations and customer’s requests.
Great care is taken to avoid any damage which might be caused during storage or transportation.
In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)Newcore Global Pvt. Ltd  Standard
2)Customization
