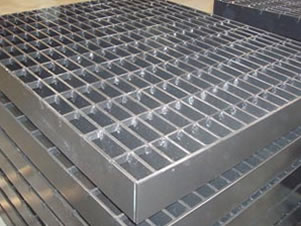

Stainless Steel Grating

Material: stainless steel alloy of 304, 304L, 316 and 316L

Standards: GB700-88, ASTM (A36), BS 4360(43A), AS3679 3)

Surface treatment: Electro-polishing

Category:

Description

Product Detail

Specification of stainless steel grating:

1. The shape of bearing ba

r: Plain type (may be omitted in the symbol of steel grating), serrated type and I-Shape type

2. Bearing bar pitches can be 12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40, 60mm, of which 30mm & 40mmare recommended.

3. Cross bar pitches can be 38, 50, 60,100mm, of which 50mm & 100mm are recommended.

4. Material: ASTM A36/SS235JR/SS400/Q235B

Technical Information

Instruction of Selecting Steel Grating:

1. Light & medium duty Maximum recommended spans

2. Heavy duty Maximum recommended spans

 Packaging

Package of Stainless Steel Grating:

Newcore Global Pvt. Ltd Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.

More

Features of Stainless Steel Grating:

1. Stainless steel grating is the most chemically resistant product. it can be forged into different styles the space gap can be adjusted according to needs.

2. Stainless steel grating is easy to clean; the most effective cleaning method is use a stem cleaner or power washer. Debris can be removed with stiff bristle brush, organic based stains, such as grease or oil.

3. Stainless grating is available in stock panels or fabricated to meet the project specifications.

4. Stainless grating can be used in food processing, such as poultry processing, beverages plants, sugar plants, etc.
