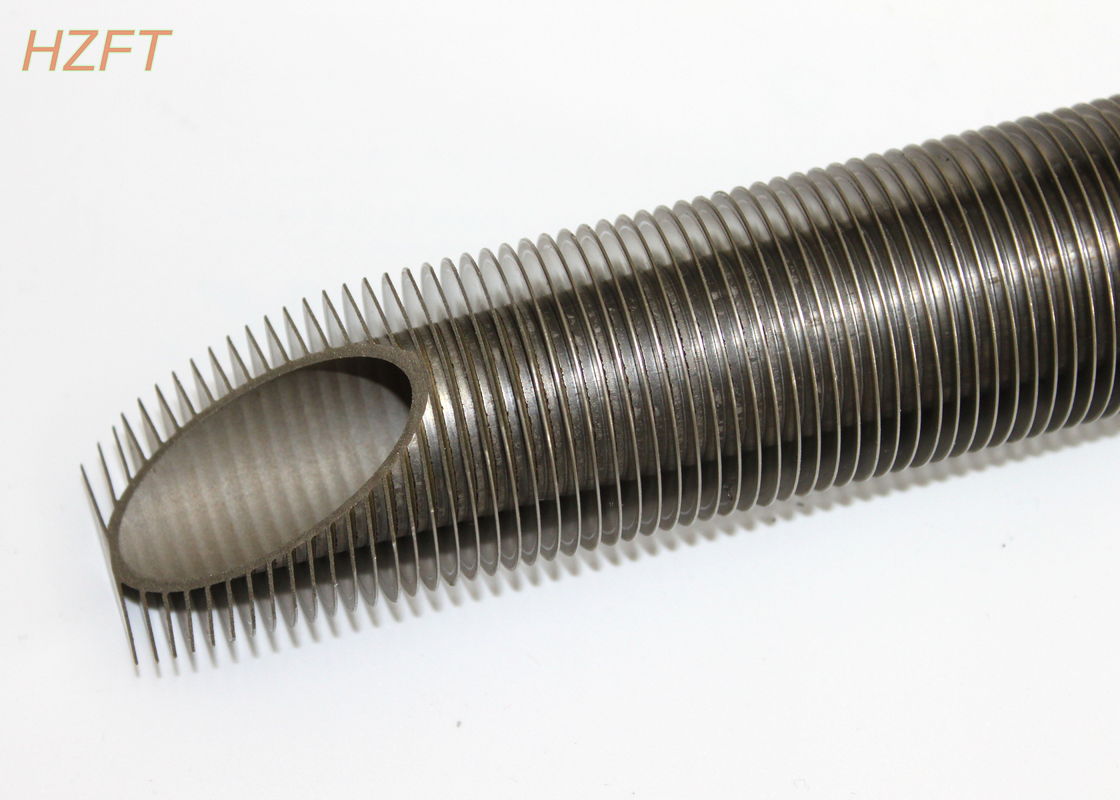

Specifications of Stainless Steel Fin Tube:
1. Grade: TP304, TP304L, TP304H, TP310, TP310S, TP310H, TP316, TP316L, TP316H, TP316Ti, TP317,
TP317L, TP321, TP321H, TP347, TP347H, UNS N08904/904L; S31803, S32205/SAF2205, S32304,
S32750/SAF2507; 1.4301, 1.4306, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4462，1.4410, etc.
2. Standard: ASTM A312/213/269, ASTM A789/A790, ASTM B677, DIN 17456, DIN 17458, EN10216-5,
ISO 1127, etc.
3. Surface finish: anneal/pickling/polished
4. Process method: cold drawn/cold rolled
5. Size:
O. D.: 6 mm to 219 mm
W. T.: 0.5 mm to 25 mm
Length: Max. 20 meters
7. Application: Boiler economizer Power plant waste heat boiler Petrochemical engineering and various heat exchangers
8. Qualifications: ISO 9001:2008, PED by English Lloyd’s Register, DNV, ASME
Specifications of U-Bend Stainless Steel Fin Tubes:
1. Initial Length:Maximum lengths of 27000mm can be supplied on request
2. Bending radius:Maximum 1000 mm
3. Heat treatment of the bend:
U-bends with a bending radius up to maximum of 1000mm can be heat treated on request
Technical Information
Grades of Stainless Steel Fin Tube:
304/304L/304H(1.4301/1.4306/1.4948); 316/316L(1.4401/1.4404); 316Ti(1.4571); 321(1.4541); 309S(1.4833); 310S(1.4845); 317L(1.4438); 321H(1.4878); 347H(1.4550); 2205(1.4462); S31803, 2507
Standards of Stainless Steel Fin Tube:
1.ASME SA213/SA213M
2.ASME SA688/SA688M
3.ASME SA789 / SA789M
4.ASME SA249/SA249M
5.GB13296-91
Standards of U-Bend Stainless Steel FinTube:
1. ASTM A688/A688M-08
2. ASTM A803/A803M
3. ASTM A556/A556M, ASME SA-556
4. ASME SA-688
Packaging
Packaging of Stainless Steel Tubes/Pipes:
Please don’t worry that our products are packed, stored, transported according to the international regulation. We do care about the quality of our products; even some little details are paid attention to.
We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer’s instructions. Special packing is available as per customer’s requirement.
Plus, our storage racks are made of wood. Other kinds of metals are settled in other places, far from the stainless steel. Any unwanted chemical reaction can be prevented.
More
Manufacturing Process of Stainless Steel Pipes/Tubes:
The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.
