Description
Product Detail

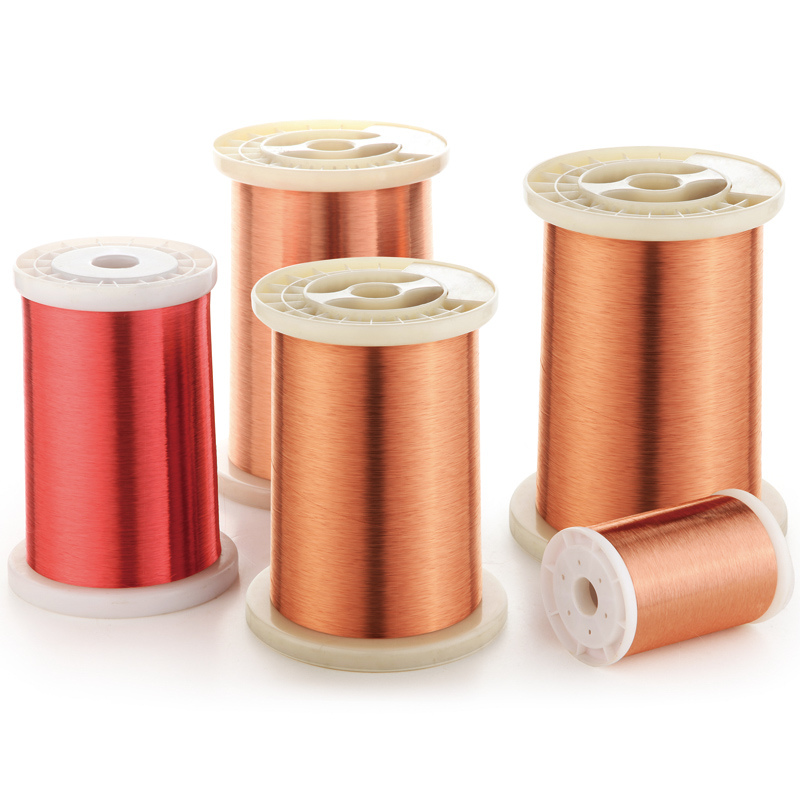

Specifications of Round Enameled Copper Wire:
1 Wire diameter:0.1-5.0mm
2 Type: enamelled copper wire,enamelled aluminum wire
3 Standard:60317-12,MW30 60317-8, MW35 60317-13, MW15 60317-12, MW16 60317-46
4 Thermal Class:120℃ ,130℃ ,155℃, 180℃ ,200℃, 240℃
5 Cross section range:0.1-6.5mm
6 Range of insulation thickness:IEC60317-0-1 GB6108.2-85
7 Enamel base coat:
1)Polyester
2)Modified Polyester
3)Polyester-Imide
4)Polyvinyl fomal Polyimide
8 Heat shock:155℃ -300℃
Features of Round Enameled Copper Wire:
1) Excellent bending property
2) High flexibility of the enamel
3) Good resistance to abrasion
4) High mechanical property
5) Higher thermal property
6) Good resistance to refrigerant and freon
7) Suitable for windings that are subjected to constantly high temperature and mechanical stress
8)Good chemical resistance
9) Outstanding mechanical and chemical property
Packaging
Packaging of Round Enameled Copper Wire:
Newcore Global Pvt. Ltd Products are packed and labeled according to the regulations and customer’s requests. Newcore Global Pvt. Ltd is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)Newcore Global Pvt. Ltd Standard
2)Customization
More
Applications of Round Enameled Copper Wire:
1) 120 degree flat enameled wire for oil-immersed transformer
2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil
3) 200 degree flat enameled wire works constantly in high temperature
4) 240 degree flat enameled wire for magnet coils of aviation,military and marine appication
Facility of Round Enameled Copper Wire :
Newcore Global Pvt. Ltd Corporation has taken the lead in importing the Round Enameled Copper Wire production and inspection equipment of the advanced international standards .The annual output of Round Enameled Copper Wire and other Enameled wire over 7,000 tons
