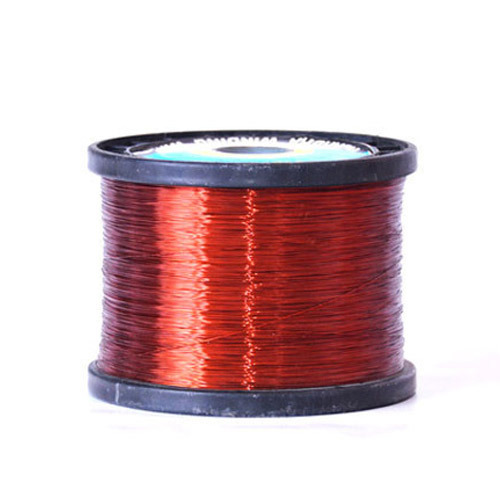

Round Enameled Aluminum Wire

Product Detail

Among all of its high-tech magnet wire products, Newcore offers a complete range of round enameled wire with aluminum as the conductor. We pride ourselves in excellent quality products with competitive pricing and prompt delivery.

Specifications of Round Enameled Aluminum Wire:

1) Wire diameter: 0.2mm – 6.5mm
2) Type: enamelled aluminum wire
3) Standard: 60317-12, MW30 60317-8, MW35 60317-13, MW15 60317-12, MW16 60317-46
4) Thermal Class: 120℃, 130℃, 155℃, 180℃, 200℃, 300℃
5) Cross section range: 0.1mm – 6.5mm
6) Range of insulation thickness: IEC60317-0-1 GB6108.2-85
7) Enamel base coat:
a) Polyester
b) Modified Polyester
c) Polyester-Imide
d) Polyvinyl fomal Polyimide
8) Heat shock: 155℃ – 300℃

Facility of Round Enameled Aluminum Wire:

Newcore has taken the lead in importing the Round Enameled Aluminum Wire production and

inspection equipment of the advanced international standards.

The annual output of the Round Enameled Aluminum Wire and other Enameled wire is over 7,000 tons.

Technical Information

Features of Round Enameled Aluminum Wire:

1) Excellent bending property

2) High flexibility of the enamel

3) Good resistance to abrasion

4) High mechanical property

5) Higher thermal property

6) Good resistance to refrigerant and freon

7) Suitable for windings that are subjected to constantly high temperature and mechanical stress

8) Good chemical resistance

9) Outstanding mechanical and chemical property

Parameters of Round Enameled Aluminum Wire:

Packaging
