Description
Product Detail

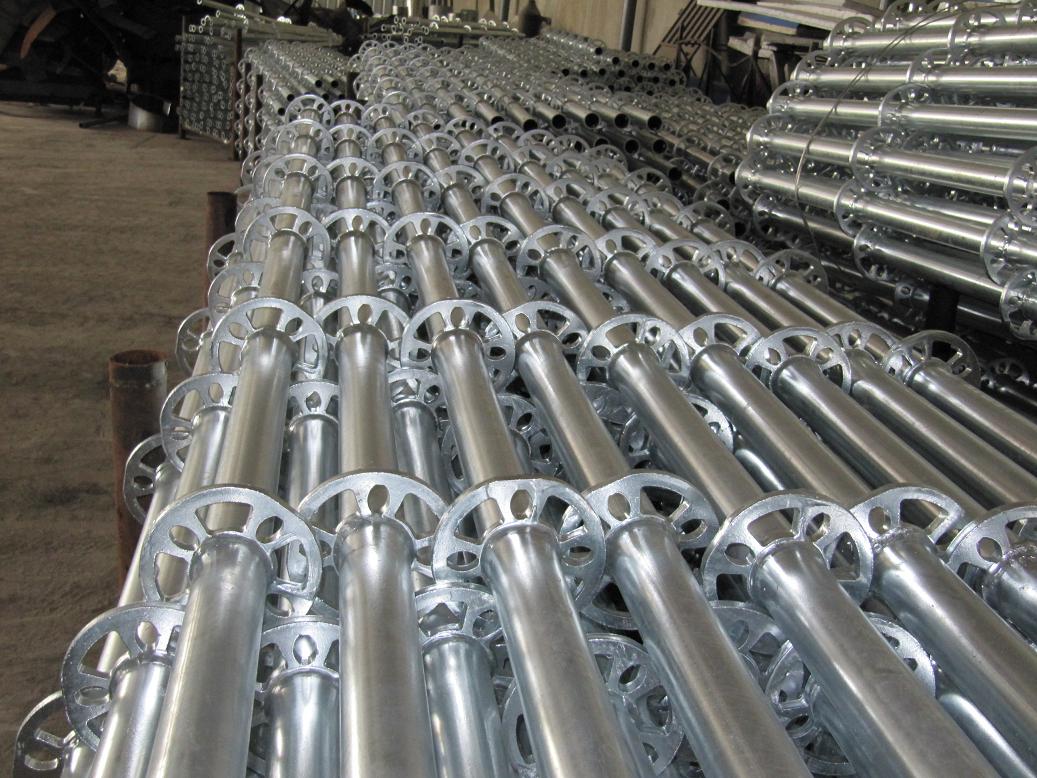

Specifications of Ring Lock Scaffolding :
1. Tube Diameter: 48.3mmx3.25mm, 48.3mmx2.5mm, 48.3mmx2.0mm, 60mmx3.2
2. Tube Thickness: 3.25/3.2mm for Standard, 3.25/3.2mm for Ledger, 2.50mm/2.00mm for Brace
3. Rosette: Pressed 10mm thickness Q345, or Drop forged

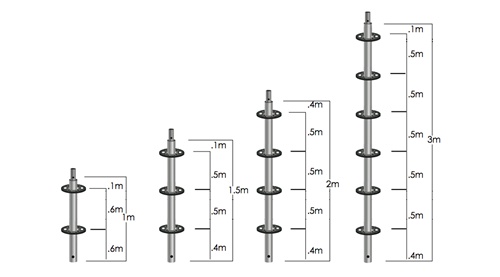

4. Basic Components: Standard, Ledger, Brace, Spigot, Plank, Ladder, Base jack, Start Collar, etc
5. Standard for steel tubular steel scaffolding: SY/T5768-95 GB/T3091-2001
6. Safety technical regulations: JGJ 231-2010
Packaging
Packing of Ring Lock Scaffolding:
1. Normally scaffolding is loaded to containers in bulk in order to load as more as possible and save sea freight.
2. If customer want to unload by forklift in order to save the labor cost, then we will pack the scaffolding in steel pallet or steel case.
3. Other special requirements can be discussed by both. We can service for you sincerely.
More
Features of Ring Lock Scaffolding:
1. Ring lock Scaffolding Systems are built to be the most reliable and efficient scaffold available
2. Safe and convenient, the Ring lock Scaffolding line includes multiple ledgers, clamps, guardrails, etc
3. Connectors, stair stringers, steps and adapters. So whether you are in the market for a complete scaffolding system
4. Or just need accessories that are compatible with your current ring lock scaffolding system
Advantage of Ring Lock Scaffolding:
1. Completely modular structure, reduce the impact of human factors of making the construction quality of the scaffold
2. Adopt hot dip zinc plating process, effectively prevent the component in the use of internal corrosion caused by the material to decline, to ensure consistency of product performance
3. Construction is convenient, high efficiency, saving time limit for a project
4. Substantial savings in steel consumption
5. Substantial savings in construction time
6. The usage time of product can reach to 30-50 years, reduce the cost of overhead
Application of Ring Lock Scaffolding:
1. A foothold in the high altitude for construction personnel in the construction
2. Skeleton of peripheral protection
3. Support the important vertical support of the template
4. Unloading platform
