Incoloy 800

Equivalent designations: Incoloy 800, UNS N08800, NS111, DIN W. Nr. 1.4876.
Place of Origin: India
Application: heat-treating equipment, chemical and petrochemical processing, nuclear power plants.
Product list:

Specification:

Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm; Length 2000-5000mm

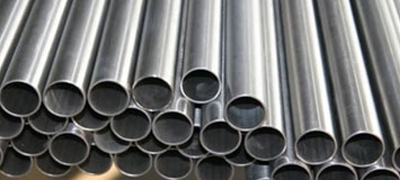

Pipe: φ6-273mm;δ1-30mm; Length 1000-8000mm
Sheet: δ0.8-36mm; Width 650-2000mm; Length 800-4500mm

Model Number: Incoloy 800

Brand Name: Newcore
Shape: Forging
Standard: ASTM ASME
Certification: ISO 9001:2008
Color: Nickel Nature
Packing: Common sea freight wooden case package/ Also can be customized
Payment: L/C,T/T
Delivery: Usually sample lead time is 7 days after payment has been confirmed.

Incoloy 800 has good rupture and creep strength and excellent resistance to oxidation, carburization and sulfidation at temperatures up to 816℃. It also resists general corrosion by many aqueous media. For Applications requiring higher stress rupture and creep properties, especially at temperatures above 816℃, Incoloy 800H and 800HT are recommended. Incoloy 800 is readily formed, welded and machined.

1. Produces process
Raw material→ Smelting→ Drawing→ Rolling→ Annealing→ Finished product→ Detection→ Packing→ Shipping
2. Chemical composition
3. Physical properties

More

Characters:

Incoloy 800 offers general corrosion resistance to many aqueous media and, by virtue of its content of nickel, resists stress corrosion cracking. At elevated temperatures it offers resistance to oxidation, carburization, and sulfidation along with rupture and creep strength. For applications requiring greater resistance to stress  rupture and creep, especially at temperatures above 1500°F (816°C), INCOLOY alloys 800H and 800HT are used.

Application:

Chemical and petrochemical process piping, heat exchangers, furnace components, carburizing equipment, heating-element sheathing, and nuclear power steam-generator tubing.
