Description
Product Detail

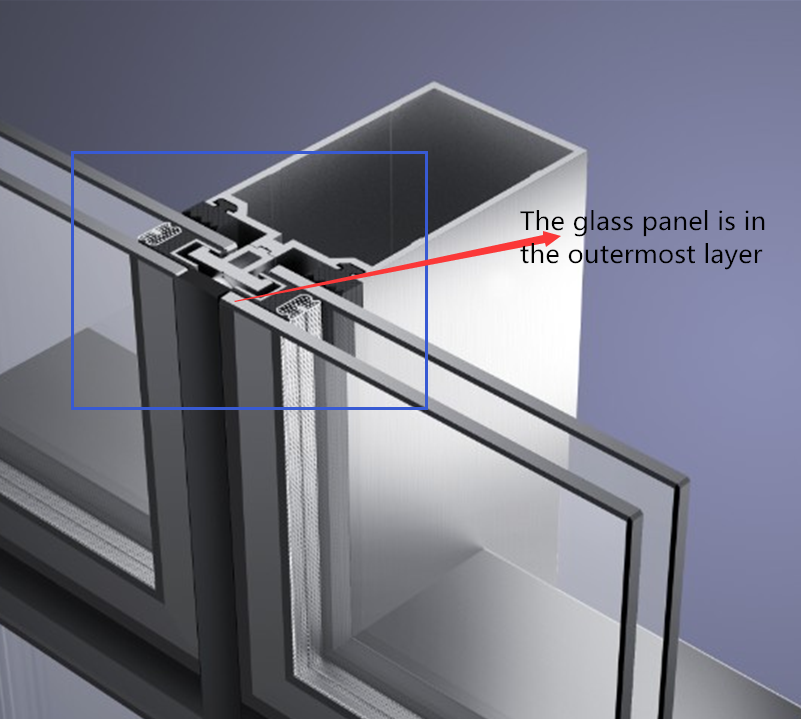

Hidden Framing Glass Curtain Wall
Certificate ISO9001:2000
Material:
Aluminum:
Construction: Thermal Break or Non-Thermal Break
Aluminum Alloy: 6063 T5
Thickness: 1.0, 2.0mm for window& door& glass room
2.0, 2.5, 3.0mm for curtain wall
Surface Treatment: Powder-coated/Anodized/Electrophoresis/PVDF, etc.
Color: Silver/Bronze/Champagne/White/Black, etc.
Type: Low-E/Reflective/Tempered/Heat-strengthened/Floated
Glass:
Glazed: Single/Double/Triple
Thickness: Single: 3mm~12mm
Double: 5mm+6A+5mm/5mm+9A+5mm/6mm+9A+6mm, etc.
Triple: 5mm+6A+5mm+6A+5mm or others.
Color: Clear/Grey/Blue/Light Green, etc.
Hardware:
Chinese Famous Brand or German Brand.
Seal System: Ternary ethylene propylene rubber sealing strip
Customers’ stipulated brand are available.
Others
Screens are available.
Performance parameters; Sound Insulation, Water/Wind Pressure/Air Permeation Resistance
Packaging
Packing:
1. inside packing: Thick paper and polyfoam for first protection.
2. outside packing: wooden shelf for the second protection.
Our products is fully designed to international standard like AAMA,ASTM,EN,BS,AS,CANS.etc and is being tested according to Australian Standard AS4284. For more technical information about our products , please contact Shanghai Metal for further information.
Also can be as your request.
More
Packing:
1. inside packing: Thick paper and polyfoam for first protection.
2. outside packing: wooden shelf for the second protection.
Our products is fully designed to international standard like AAMA,ASTM,EN,BS,AS,CANS.etc and is being tested according to Australian Standard AS4284. For more technical information about our products , please contact Shanghai Metal for further information.
Also can be as your request.
