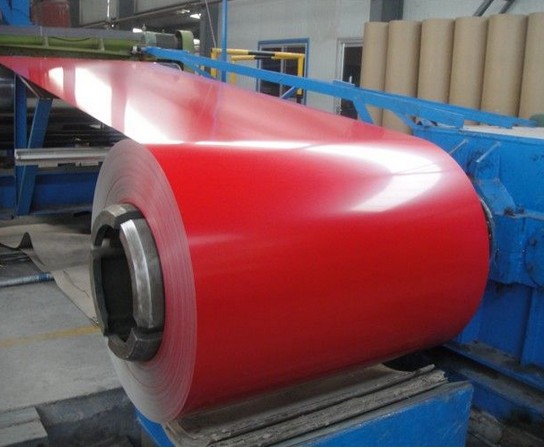

Colour Coated Aluminium Coil

Colour coated aluminum coils and sheets are widely used in construction industry for making curtain walls, ceilings,

aluminum veneer, imitation marble sheets, honeycomb panels, window-blinds, Aluminum Composite Panels(ACP), etc.

Specifications of Colour Coated Aluminium Coil:

1) Grade:
a) 1000 Series: 1050, 1060, 1100, 1200, etc.
b) 3000 Series: 3003, 3004, 3005, 3104, 3105, etc.
c) 5000 Series: 5005, 5052, 5182, 5454, 5754, etc.
d) 6000 Series: 6061, 6063, 6082, etc.
e) 8000 Series: 8006, 8011, 8079, etc.
2) Thickness: Roll Coating 0.05mm – 3.0mm, Plate Coating up to 10mm
3) Width: 2200mm max.
4) Temper: H1X, H2X, H3X, H4X
5) Color: Metallic, Solid, RAL or by customer requirements
6) Coating paint: PVDF, PE
7) Coating thickness: as per customer’s request
8) Protective film: PVC film, Colorless transparent or White-black

Technical Information

Manufacturing of Colour Coated Aluminium Coil

Decoiler → Accumulator → Tension Leveller → Acid&Alkali Cleaner → Rinse → Conversion Treatment → Priming coater → Infrared Curing Oven → Main coater → Floatation Curing Oven → Strippable Film Applicator → Exit Accumulator → Recoiler

Packaging

Packaging of Colour Coated Aluminium Coil

Newcore Global Pvt. Ltd Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Newcore Global Pvt. Ltd Standard

2) Customization

Our Service

To meet the entirety of our customers business needs, Newcore Global Pvt. Ltd  offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery. Newcore Global Pvt. Ltd  prides itself on achieving superior results and satisfying customer needs. In this, we earnestly strive to fulfill our role as trustworthy and reliable supplier of business services throughout the entire world.

Our Value-Added Manufacturing Services not only save our customer time from having to out-source, but also spare them the cost of dealing with several disparate shops and deadlines.

More

Applications of Colour Coated Aluminium Coil:

1) Energy-saving aluminum curtain wall insulation board

2) Aluminium composite panels

3) Vol colour coated aluminum

4) Coated aluminum volume

5) Roll-coated aluminum volume

6) Pre-coated aluminum sheet roll

7) Paint aluminum volume

8) Aluminium veneer

9) Aluminum honeycomb panels
