Description
Product Detail
Specifications of Aluminum Clad Copper Tube:
1) Grade: C11000copper, 3003aluminum
2) Outside Diameter: 6.35mm – 19.05mm
3) Wall Thickness: 0.5mm – 1.20mm
4) Tensile: 110MPa – 130MPa
5) Expanding: 40% – 50%
6) Blast pressure: 180MPa
Aluminum:3003
Copper: T2 (C1100 in JIS;C11000 in ASTM)
Features for Aluminum Clad Copper Tube:
1) Good heat-transmit performance
2) Heat conduction
3) Good elongation
4) Being extruded and processed well
5) Good corrosion-resistance
6) Climate-hardiness
7) Excellent heat-sinking capability
Technical Information
Nominal Datum:
Specific Gravity: 3.4g/cu.cm

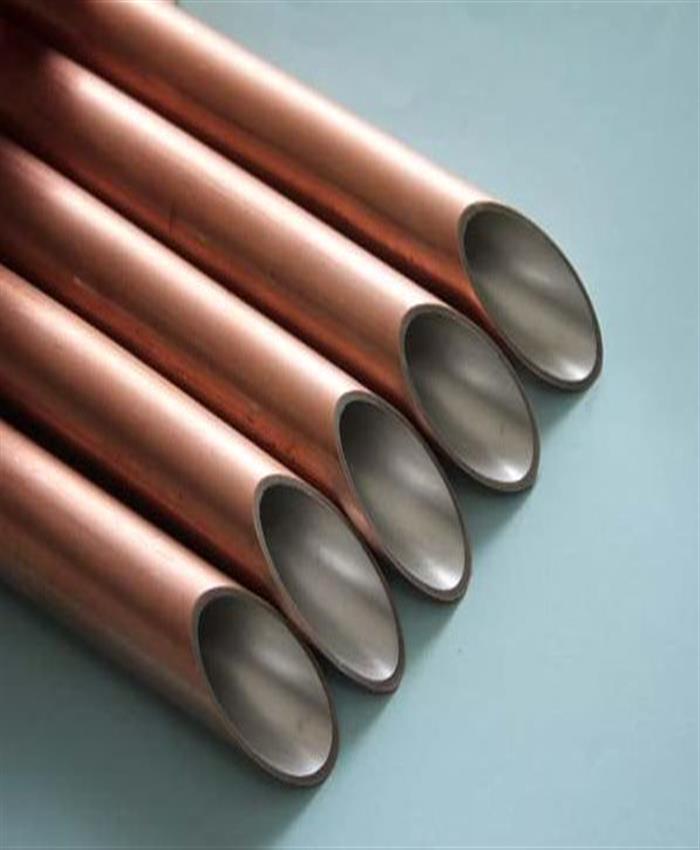

Bright Tubes:
*Shadowed area show the normal products we can make.
* If you have special request, please contact us.
* If you have special request, please contact us.

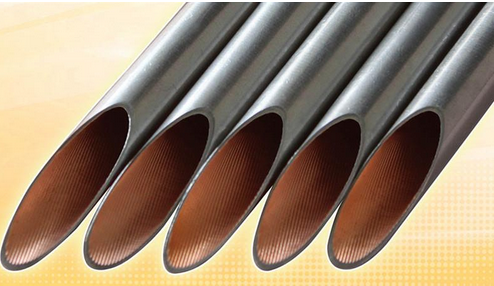

Inner Grooved Tubes:
Packaging
Packaging of Aluminum Clad Copper Tube
Newcore Global Pvt. Ltd Products are packed and labeled according to the regulations and customer’s requests. Newcore Global Pvt. Ltd is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
More
Applications of Aluminum Clad Copper Tube:
1) Air-condition
2) Refrigeration
3) Cooler
4) Dehumidifier
5) Heat exchanger
6) Other industries
