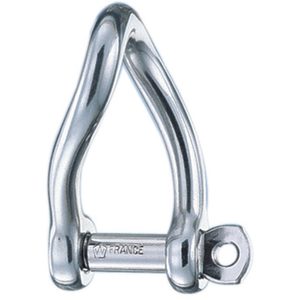

Marine Shackle

Nominal Weight: 0.03 – 69.85 kg

Surface Treatment: Galvanized

Category:

Description

Product Detail

E type Safety Pin D Shackles are manufactured from stainless steel 304 316 or Carbon steel. They are produced using the latest technology in upset forging and are consequently of a very high standard. They are supplied with test certificate type EN10204 3.1b

Specification of Marine Shackle:
The table below shows standard sizes. Other sizes are available on request and can be manufactured to order.
1.Body Diameter: 3/16 inch – 3 inch
2.Pin Diameter: 1/4 inch – 3.1/4 inch
3.W.L.L: 1/3 ton – 85 ton
4.N.W: 0.03 kg – 69.85 kg

More

Product Features of Marine Shackle:

• Stainless steel D shackles manufactured from 17/4PH precipitation hardening martensitic stainless steel

• Excellent for general lifting applications – high tensile properties while avoiding work hardening

• Corrosion resistance similar to 18/8 grade steels (304)

• Factor of Safety 6:1

• Available with 4 pin types – Standard Screw Collar Pin (A Type), Extended Screw Collar Pin (AL Type), Countersunk Head (B Type), E Type Safety Pin (E Type)

• Manufactured using the latest technology in electrical upset forging



Quality of Marine Shackle:

• All shackles are manufactured in accordance with the Machine Directive 2006/42/EC

• Inspection certificate BS EN 10204 3.1b available on request.

• High quality finish and excellent polish



Application of Marine Shackle:

• General lifting in off-shore applications

• General lifting and tethering in leisure marine applications

• General lifting purposes
