Stainless Steel Mesh – NEWCORE GLOBAL PVT. LTD http://www.newcoreglobal.com NEWCORE GLOBAL PVT. LTD Fri, 14 Sep 2018 06:53:52 +0000 en-US hourly 1 https://wordpress.org/?v=4.8.7 Stainless Steel Grating http://www.newcoreglobal.com/product/stainless-steel-grating-2/ http://www.newcoreglobal.com/product/stainless-steel-grating-2/#respond Thu, 31 Aug 2017 19:29:03 +0000 http://www.newcore.net.in/?post_type=product&p=2503 Material: Stainless Steel Alloy of 304, 304L, 316 and 316L Standards: GB700-88, ASTM (A36), BS 4360(43A), AS3679 Surface Treatment: Electro-polishing]]> Product Detail

Specification of stainless steel grating:

1) The shape of bearing bar: Plain type (may be omitted in the symbol of steel grating),

serrated type and I-Shape type
2) Bearing bar pitches can be 12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40, 60mm, of which

30mm & 40mmare recommended.
3) Cross bar pitches can be 38, 50, 60,100mm, of which 50mm & 100mm are recommended.
4) Tolerance
The allowed deviation of length is +10/-0mm, while the allowed deviation of width is +/-5 mm.
The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar.
Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar

should not surpass the end surfaces of two sides of grating 2mm.
5) Surface Finish:

Stainless steel grating will have a mill finish, since after the welding finish the welded area

produces a discoloration on the surface, only after Electro-polishing the discoloration can be removed.

Technical Information

Instruction of selecting steel grating:

1) Light & medium duty Maximum recommended spans

2) Heavy duty Maximum recommended spans：

More

Features of stainless steel grating:

1)Stainless steel grating is the most chemically resistant product. it can be forged into different styles the space gap can be adjusted according to needs.

2)Stainless steel grating is easy to clean; the most effective cleaning method is use a stem cleaner or power washer. Debris can be removed with stiff bristle brush, organic based stains, such as grease or oil.

3)Stainless grating is available in stock panels or fabricated to meet the project specifications.

4)Stainless grating can be used in food processing, such as poultry processing, beverages plants, sugar plants, etc.

Applications of Stainless Steel Grating:

– Fields of Light chemical industry, Petro-chemistry, Machinery industry, Textile chemistry, Port engineering, Oil and grease chemistry, Agriculture husbandry, Horticulture, Steel industry, Waste disposal, Food processing, Aquatic breeding, Fertilizer industry, Pharmaceutical industry, Parking lot, Cement plant, Oil refinery, Mining and refinery, Power plant, Public utilites, Marine engineering, Shipbuilding, Construction material industry, Defense project, Water plant, Sewage disposal, Paper and pulp industry, Construction industry, Transportation industry, Automobile industry.

– Steel gratings can be used as flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, etc

]]> http://www.newcoreglobal.com/product/stainless-steel-grating-2/feed/ 0 Stainless Steel Wire Mesh http://www.newcoreglobal.com/product/stainless-steel-wire-mesh/ http://www.newcoreglobal.com/product/stainless-steel-wire-mesh/#respond Thu, 31 Aug 2017 19:24:11 +0000 http://www.newcore.net.in/?post_type=product&p=2498 Material: 304, 304L, 316, 316L Wire Diameter: 0.025 - 1.8mm]]> Product Detail

Specification of Stainless Steel Wire:

1. Material: Stainless steel wire type 201, 304, 304L, 316, 316L, 321 and 430 etc. for stainless steel woven wire mesh and cloth.

2. Weaving: plain weave, twill weave, Dutch plain weave or Dutch twill weave.
3. Standard roll size: Standard width of stainless steel wire mesh: 1m or 48″standard roll length of stainless steel wire mesh: 30m or 100′.
4. Wire mesh packing: wrapped with moister-proof paper, then in wooden cases.

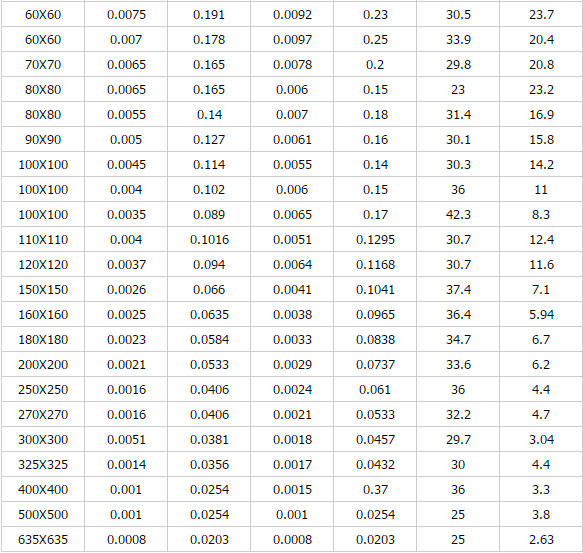

 Technical Information

 Packaging

Packing Information of Stainless Steel Wire Mesh:

Newcore Global Pvt. Ltd Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Newcore Global Pvt. Ltd Standard

2)Customization

More

Popular Weaving Types of Stainless Steel Wiremesh:

1. Plain Weave

2. Twilled Weave

3. Dutch Plain Weave

4. Dutch Twilled Weave

5. Reverse Weave

6. Five Heddle Weave

Plain weaven stainless steel wire mesh is the most commonly used style of products. Plain weave wire meshes guarantee optimum accuracy of apertures or filter pores.

Twilled woven wire mesh is suitable for where increased wire thickness is required in relation to the aperture size.

Plain Dutch Weave is similar to plain weave, while the warp wires are thicker and lie closer to each other. This type of stainless steel woven wire mesh is mainly used as industrial filter cloth and apparatus of separation.

Twill Dutch Weave is a combination of the Hollander Weave and the twill weave. This type enables a strong wire cloth with super fine filtration. Twilled Dutch woven wire cloth in stainless steel is ideal for fine filtration.

]]> http://www.newcoreglobal.com/product/stainless-steel-wire-mesh/feed/ 0 Stainless Steel Expanded Mesh http://www.newcoreglobal.com/product/stainless-steel-expanded-mesh/ http://www.newcoreglobal.com/product/stainless-steel-expanded-mesh/#respond Thu, 31 Aug 2017 19:14:18 +0000 http://www.newcore.net.in/?post_type=product&p=2493 Product Detail

Specifications of Stainless Steel Expanded Mesh:
It can be supplied with a variety of openings:

1. Standard Rhombic Shaped
2. Heavy Type (Tortoise-shaped)
3. Flattended Type
4. Micron Opening
5. Special Types
Popular Types of Stainless Steel  Expanded Mesh:

1. Raised Mesh
2. Flattened Mesh
3. Expanded Walkway Mesh
4. Decorative Mesh



Raised Mesh (Raised expanded metal) is supplied in the condition in which it is produced on the machine where the individual strands are set at an angle to the plane of the sheet.


Flattened Mesh
By passing the mesh through a set of heavy duty pressure rolls, the angled strands are flattened back to the original plane of the sheet. It is common that the material thickness is reduced slightly when flattened to ensure a level and even condition.

Expanded walkway Mesh is perfectly suited to many industrial applications and is available in two distinct styles.

 Technical Information

Technical notes:

 Packaging

Packing Information of Stainless Steel Expanded Mesh:

Newcore Global Pvt. Ltd Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.

More

Features of Stainless Steel Expanded Mesh:

1. Acid resistant

2. Alkali resistant

3. Heat resistant

4. Corrosion resistant

Applications of Stainless Steel Expanded Mesh:

Expanded stainless steel mesh is widely used as protection fences, screens for window of cars, basket handrails, battery netting, satellite aerials, reinforcement materials, filtration materials and other uses.

]]> http://www.newcoreglobal.com/product/stainless-steel-expanded-mesh/feed/ 0
