Precision Alloy – NEWCORE GLOBAL PVT. LTD http://www.newcoreglobal.com NEWCORE GLOBAL PVT. LTD Fri, 14 Sep 2018 06:53:52 +0000 en-US hourly 1 https://wordpress.org/?v=4.8.7 Elastic Alloy http://www.newcoreglobal.com/product/elastic-alloy/ Fri, 18 Aug 2017 16:22:37 +0000 http://www.newcore.net.in/?post_type=product&p=1763 Material grade: UNS R30003，3J21，Phynox, W.Nr 2.4711 Forms available: Strip, wire, bar, rod]]> Product Detail
Products detail:
Elgiloy (Co-Cr-Ni Alloy) is a  “super-alloy” consisting of 39-41% Cobalt, 19-21% Chromium, 14-16%  Nickel, 11.3-20.5% Iron, 6-8% Molybdenum, and 1.5-2.5% Manganese.
Elgiloy alloy was originally developed  for the manufacture of watches, and is applied in aerospace, oil, natural  gas, medical and clinical equipment and other high-tech fields and key parts because  of its excellent corrosion resistance, mechanical properties and long service  life. The alloy has high corrosion resistance and low relaxation stress at  the height of 600 F.
Density=8.3g/cm3
Standard:Standard
AMS 5833
AMS 5834
AMS 5876
ASTM F1058
ISO 5832-7
ISO 15156-3
Material grade:
UNS R30003，3J21，Phynox, W.Nr 2.4711
Forms available at A-one Alloy: Strip, wire, bar, rod

Chemical Composition:

C=0.15，NI=15.50，Co=40.00，Cr=20.00，Mo=7.00，Mn=2.00，Fe=remainder

Technical Information

Chemical Composition:

C=0.15，NI=15.50，Co=40.00，Cr=20.00，Mo=7.00，Mn=2.00，Fe=remainder

More

Character:

Combination of high strength, ductility and good  mechanical properties at ambient temperatures

Excellent fatigue life

Excellent corrosion resistance in numerous environments

Non magnetic

Age hardenable (Spring Temper only)

Good for sea water applications

Advantages

Competitive price.

Our strengths over other suppliers.

Reliable quality on the base of  the same price.

Timely delivery as your  requirements.

Professional service to cut much purchasing costs down

]]> Expansion Alloy http://www.newcoreglobal.com/product/expansion-alloy/ http://www.newcoreglobal.com/product/expansion-alloy/#respond Fri, 18 Aug 2017 16:15:07 +0000 http://www.newcore.net.in/?post_type=product&p=1756 Standards: ASTM F 1684-06 Equal grades: Invar 36, NILO 36, Pernifer 36, 4J36, EN  1.3912, UNS K93600, UNS K93603, Werkstoff 1.3912]]> Product Detail
Products detail:
Super Invar, a magnetic, austenitic, solid solution  alloy containing iron, nickel, and cobalt, is designed to provide minimum  thermal expansion at room temperatures. This alloy also exhibits austenite  stability to service temperature at least -67°F and thermal expansion  properties less than those of Invar 36 alloy (36% nickel-iron) when used in  the -67/203°F (-55/95°C) temperature range.
Equal grades:
Invar 36, NILO 36, Pernifer 36, 4J36, EN  1.3912, UNS K93600, UNS K93603, Werkstoff 1.3912
Standards:
ASTM F 1684-06
Forms available:
Sheet, strip, wire, rod, bar, tube, capillary

Technical Information

Chemical  composition:

Ni=35.0~37.0, Fe=Remainder, Mo≤0.50, C≤0.1, Cu≤0.5, Mn≤0.60,  Si≤0.35, P≤0.025, S≤0.025, Cr≤0.5

More

Character

Low expansion rate up to 500°F

Readily weldable

Application

Optical instruments

Telescopes

Laser instruments and equipment

Ring laser gyroscopes

Laser benches

Positioning devices

Metrology devices

Scientific instruments

Structural components and supports for optical and  laser systems

Applications that require lower expansivity than Invar

Advantages

Competitive price

Our strengths over other suppliers

Reliable quality on the base of  the same price

Timely delivery as your  requirements

Professional service to cut much purchasing costs down



]]> http://www.newcoreglobal.com/product/expansion-alloy/feed/ 0 Permanent Magnetic Alloy http://www.newcoreglobal.com/product/permanent-magnetic-alloy/ http://www.newcoreglobal.com/product/permanent-magnetic-alloy/#respond Fri, 18 Aug 2017 16:08:12 +0000 http://www.newcore.net.in/?post_type=product&p=1751 Product Detail
Products details:
Sintered NdFeB magnets are the most powerful commercialized permanent magnets available today, with maximum energy product ranging from 26 MGOe to 55 MGOe. Nd-Fe-B is the third generation of permanent magnet developed in the 1980s. It has a combination of very high remanence and coercivity, and comes with a wide range of grades, sizes and shapes. With its excellent magnetic characteristics, abundant raw material and relatively low prices, Nd-Fe-B offers more flexibility in designing of new or replace the traditional magnet materials such as ceramic, Alnico and Sm-Co to achieve high efficiency, low cost and more compact devices.
Forms available:
Cold rolled strip
Thickness: 0.05-1.0mm
Width: 5-200mm
Wire diameter: Φ0.1～6.0mm
Bar diameter: Φ5-200mm

Technical Information

Specification:

Magnetic Properties of Sintered NdFeB Magnets

Licensed Products by SNEW-MQ – ISO 9002 Quality Standard Certified

The above-mentioned data of magnetic parameters and physical properties are given at room temperature.

The maximum service temperature of magnet is changeable due to the ratio length and diameter and environmental factors.

Special properties can be achieved with custom method.

Physical and Mechanical Properties

More

Character

High hysteresis loss

Low magnetizing force

Highest efficiency (loss per unit magnetizing force) of any known material

Application

Ductile magnetic alloys have been used  for biasing magnets in meters and magnetic actuators, as magnetic coded  devices, field coils for DC motors and servos and hysteresis motor laminations.

Advantages

Extreme strong Br Resident induction

Excellent demagnetization resistance capability

Good Price relative to its high magnetic properties

]]> http://www.newcoreglobal.com/product/permanent-magnetic-alloy/feed/ 0 Soft Magnetic Alloy UNS R30005 http://www.newcoreglobal.com/product/soft-magnetic-alloy-uns-r30005/ http://www.newcoreglobal.com/product/soft-magnetic-alloy-uns-r30005/#respond Fri, 18 Aug 2017 15:58:22 +0000 http://www.newcore.net.in/?post_type=product&p=1746 Standard: GB/T15002-1994, ASTM A801 Alloy 1 Grade: UNS R30005, K92650, Hiperco 50 and 1J22, Permendur，Suprmendur Condition: Cold rolled, hot rolled, bright, burnished, hot forging, peeled, turned]]> Product Detail

Specification:

1. Standard:
GB/T15002-1994, ASTM A801 Alloy 1

Grade: UNS R30005, K92650, Hiperco 50 and 1J22, Permendur，Suprmendur

2. Size:
Sheet Thickness: 0.1mm-0.5mm, width:10.0-210mm
Plate Thickness: 3.5mm-4.0mm, width:≤300mm
Rod Dia 8.0-32.0mm, length≤2000; Dia 32.0-150.0mm, length≤1000
3. Condition:
Cold rolled, hot rolled, bright, burnished, hot forging, peeled, turned
4. Packing:
According the characteristic of material, suitable packing and follow China Customs regulations, or As buyer’s request .
Ex. Gross Weight; Under 20kg Carton Box / Over 20kg Plywood Box or Pallet.

Technical Information

1. Description: UNS R30005/1J22/K92650/Hiperco 50 is an iron-cobalt-vanadium soft magnetic alloy which exhibits high magnetic saturation , high d.c. maximum permeability, low d.c. coercive force, and low a.c. core loss.

2. Chemical element:

3. Magnetic property:

More

Newcore Global Pvt. Ltd  have long history supplying such soft magnetic alloy steel abroad. We have our own method to guarantee the physical and magnetic property after forged and annealed progress. It will be extremely prefect quality indeed.

1.We supply the further heat treatment method, which helping customers meeting their magnetic property when put into using.

2.We do further heat treat if customer couldn’t beginning heat treatment by themselves. But the product should cut to their required size.



Application:

Special Motors for the Aerospace Industry.Electromagnets for medical applications ,Electrical Generators; Specialty Transformers,Pole Pieces for Electromagnets; Magnetic Bearings ,High Magnetic Flux Devices and Instruments.

]]> http://www.newcoreglobal.com/product/soft-magnetic-alloy-uns-r30005/feed/ 0 Kovar Alloy & Soft Magnetic Alloy http://www.newcoreglobal.com/product/kovar-alloy-soft-magnetic-alloy/ http://www.newcoreglobal.com/product/kovar-alloy-soft-magnetic-alloy/#respond Fri, 18 Aug 2017 15:30:42 +0000 http://www.newcore.net.in/?post_type=product&p=1741 Standard: GB 4J29，ASTM F15，UNS K94610 Grade: 4j28, 4j28A, 4j29, 4j50, etc.]]> Product Detail

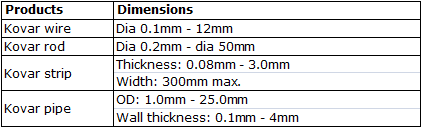

Kovar Alloy
Standard: GB 4J29，ASTM F15，UNS K94610

Grade: 4j28, 4j28A, 4j29, 4j50, etc.

Temper: soft, 1/2 hard, full hard

Density: 8.17 g/cm3


Soft Magnetic Alloy Strip & Coil

Grade: 1J46, 1J50, 1J54, 1J76, 1J77, 1J79, 1J80, 1J85, 1J86, 1J34, 1J51, 1J52, 1J65, 1J66, 1J67, 1J83, 1J403

Technical Information

Features of Kovar Alloy & Soft Magnetic Alloy:

Packaging

Packaging of Kovar Alloy & Soft Magnetic Alloy:

Newcore Global Pvt. Ltd provide standard seaworthy packaing accroding to customer’s needs. With steel strip wrap and wire fixed in the container. Special demands can be meet according to different customer needs.

Great care is taken to avoid any damage which might be caused during storage or transportation.

In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Newcore Global Pvt. Ltd  Standard

2)Customization

More

Application:

High-power transmitting valves

Transistor leads and headers

Integrated-circuit lead frames

Photography flash bulbs



]]> http://www.newcoreglobal.com/product/kovar-alloy-soft-magnetic-alloy/feed/ 0
